Visualizations

Quasiprobability distributions of Gaussian states can be visualized with Makie.jl. Gabs.jl currently has support for the following distributions, which can be called with the keyword argument dist:

• wigner
• wignerchar

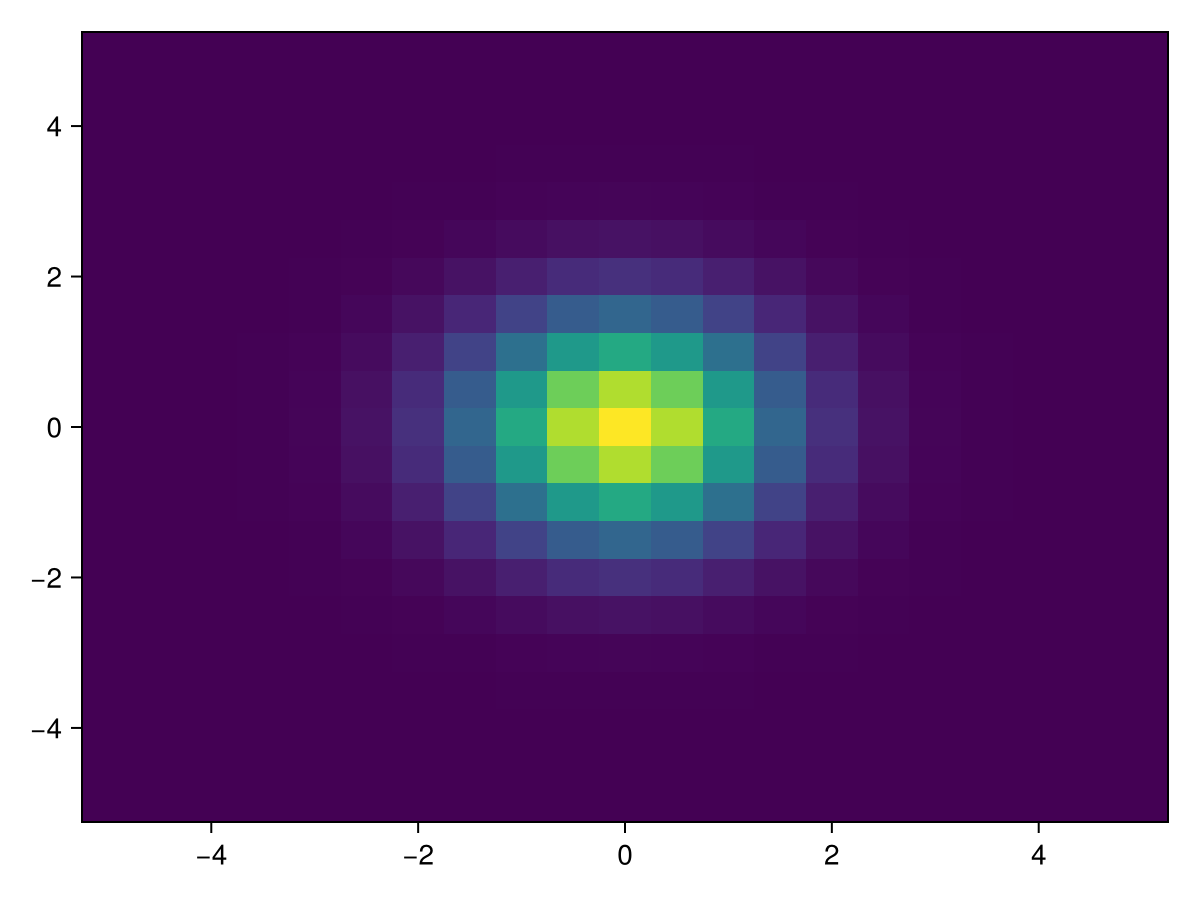

Below is a code example that plots the wigner distribution of a vacuum state:

using Gabs, CairoMakie
basis = QuadPairBasis(1)
state = vacuumstate(basis)
q, p = collect(-5.0:0.5:5.0), collect(-5.0:0.5:5.0) # phase space coordinates
heatmap(q, p, state, dist = :wigner)

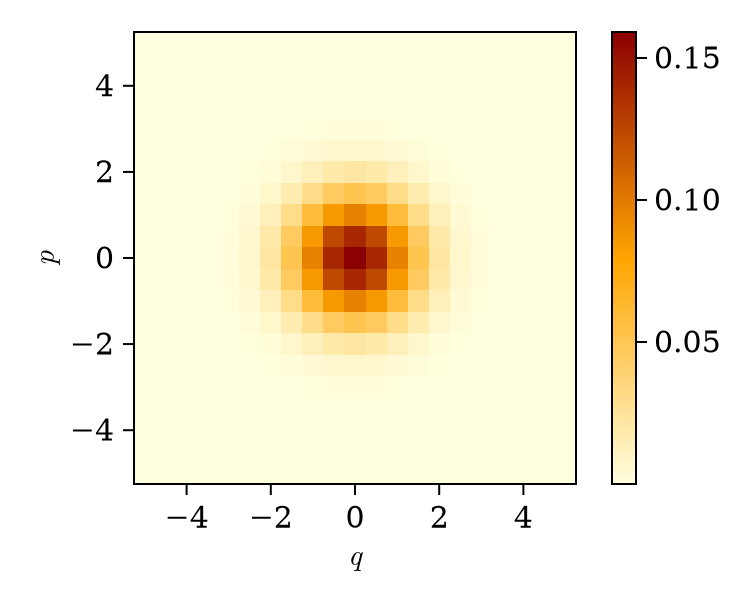

Of course, more plotting sugar can be added to this example with internal Makie attributes:

using Gabs, CairoMakie
basis = QuadPairBasis(1)
state = vacuumstate(basis)
q, p = collect(-5.0:0.5:5.0), collect(-5.0:0.5:5.0) # phase space coordinates
fig = Figure(fontsize=15, size = (375, 300), fonts = (; regular="CMU Serif"))
ax = Axis(fig[1,1], xlabel = L"q", ylabel = L"p")
hm = heatmap!(ax, q, p, state, dist = :wigner, colormap = :heat)
Colorbar(fig[1,2], hm)
fig

Using Custom Arrays

Types such as GaussianState, GaussianUnitary, and GaussianChannel are agnostic array wrappers, so they can hold any custom array that exists in the Julia ecosystem. Operations in Gabs.jl preserve these custom array types, provided they follow the AbstractArray interface.

Let's explore this feature in detail, using StaticArrays.jl and SparseArrays.jl as a case study. To create a coherent state that wraps around pure Julia arrays, the function coherentstate can be called with a single complex argument:

julia> coherentstate(QuadPairBasis(1), 1.0-im)
GaussianState for 1 mode.
  symplectic basis: QuadPairBasis
mean: 2-element Vector{Float64}:
  2.0
 -2.0
covariance: 2×2 Matrix{Float64}:
 1.0  0.0
 0.0  1.0

Here, a GaussianState object containing a Vector{Float64} of size two (mean vector) and a Matrix{Float64} of size two by two (covariance matrix) was initialized. If we want to potentially optimize and boost the performance of our code, then one approach would be to wrap our GaussianState around different array types, for instance, an SVector from StaticArrays.jl or a SparseVector from SparseArrays.jl. Any defined method in Gabs.jl that (i) creates a custom type or (ii) transforms a custom type can specify an array type in its first (and second) arguments. Let's see an example with StaticArrays.jl:

julia> using StaticArrays

julia> state = coherentstate(SVector{2}, SMatrix{2,2}, QuadPairBasis(1), 1.0-im)
GaussianState for 1 mode.
  symplectic basis: QuadPairBasis
mean: 2-element SVector{2, Float64} with indices SOneTo(2):
  2.0
 -2.0
covariance: 2×2 SMatrix{2, 2, Float64, 4} with indices SOneTo(2)×SOneTo(2):
 1.0  0.0
 0.0  1.0

julia> tp = state ⊗ state
GaussianState for 2 modes.
  symplectic basis: QuadPairBasis
mean: 4-element SVector{4, Float64} with indices SOneTo(4):
  2.0
 -2.0
  2.0
 -2.0
covariance: 4×4 SMatrix{4, 4, Float64, 16} with indices SOneTo(4)×SOneTo(4):
 1.0  0.0  0.0  0.0
 0.0  1.0  0.0  0.0
 0.0  0.0  1.0  0.0
 0.0  0.0  0.0  1.0

julia> using SparseArrays

julia> ptrace(SparseVector, SparseMatrixCSC, tp, 1)
GaussianState for 1 mode.
  symplectic basis: QuadPairBasis
mean: 2-element SparseVector{Float64, Int64} with 2 stored entries:
  [1]  =  2.0
  [2]  =  -2.0
covariance: 2×2 SparseMatrixCSC{Float64, Int64} with 2 stored entries:
 1.0   ⋅
  ⋅   1.0

Importantly, methods that create or manipulate a Gaussian state, such as tensor and ptrace, preserve array types, but can also opt for a different array type.

julia> state = displace(Array{Float32}, QuadPairBasis(1), 1.0-im)
GaussianUnitary for 1 mode.
  symplectic basis: QuadPairBasis
displacement: 2-element Vector{Float32}:
  2.0
 -2.0
symplectic: 2×2 Matrix{Float32}:
 1.0  0.0
 0.0  1.0

Creating Symbolic Gaussian States

Create Gaussian states with symbolic variables using Symbolics.jl:

julia> using Symbolics

julia> @variables r θ τ
3-element Vector{Num}:
 r
 θ
 τ

julia> b = QuadBlockBasis(2);

julia> st = eprstate(b, r, θ)
GaussianState for 2 modes.
  symplectic basis: QuadBlockBasis
mean: 4-element Vector{Num}:
 0
 0
 0
 0
covariance: 4×4 Matrix{Num}:
         cosh(2r)  -cos(θ)*sinh(2r)                 0  -sinh(2r)*sin(θ)
 -cos(θ)*sinh(2r)          cosh(2r)  -sinh(2r)*sin(θ)                 0
                0  -sinh(2r)*sin(θ)          cosh(2r)   cos(θ)*sinh(2r)
 -sinh(2r)*sin(θ)                 0   cos(θ)*sinh(2r)          cosh(2r)

julia> op = beamsplitter(b, τ)
GaussianUnitary for 2 modes.
  symplectic basis: QuadBlockBasis
displacement: 4-element Vector{Num}:
 0
 0
 0
 0
symplectic: 4×4 Matrix{Num}:
 sqrt(1 - τ)      sqrt(τ)            0            0
    -sqrt(τ)  sqrt(1 - τ)            0            0
           0            0  sqrt(1 - τ)      sqrt(τ)
           0            0     -sqrt(τ)  sqrt(1 - τ)

julia> newst = ptrace(op * st, 1);

Use Latexify to render the covariance matrix of newst in LaTeX with the command latexify(newst.covar) |> print:

\[\begin{equation} \left[ \begin{array}{cc} \left( \cosh\left( 2 r \right) \sqrt{1 - \tau} + \cos\left( \theta \right) \sinh\left( 2 r \right) \sqrt{\tau} \right) \sqrt{1 - \tau} - \left( - \sqrt{\tau} \cosh\left( 2 r \right) - \cos\left( \theta \right) \sinh\left( 2 r \right) \sqrt{1 - \tau} \right) \sqrt{\tau} & 2 \sinh\left( 2 r \right) \sin\left( \theta \right) \sqrt{\tau} \sqrt{1 - \tau} \\ 2 \sinh\left( 2 r \right) \sin\left( \theta \right) \sqrt{\tau} \sqrt{1 - \tau} & \left( \cosh\left( 2 r \right) \sqrt{1 - \tau} - \cos\left( \theta \right) \sinh\left( 2 r \right) \sqrt{\tau} \right) \sqrt{1 - \tau} - \left( - \sqrt{\tau} \cosh\left( 2 r \right) + \cos\left( \theta \right) \sinh\left( 2 r \right) \sqrt{1 - \tau} \right) \sqrt{\tau} \\ \end{array} \right] \end{equation}\]
